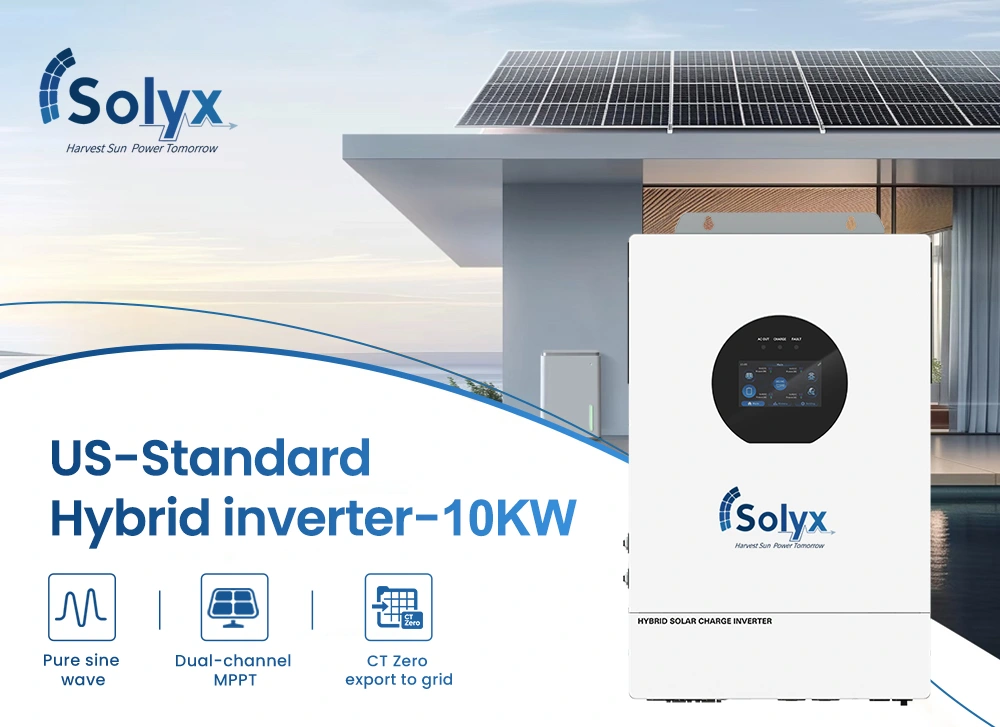

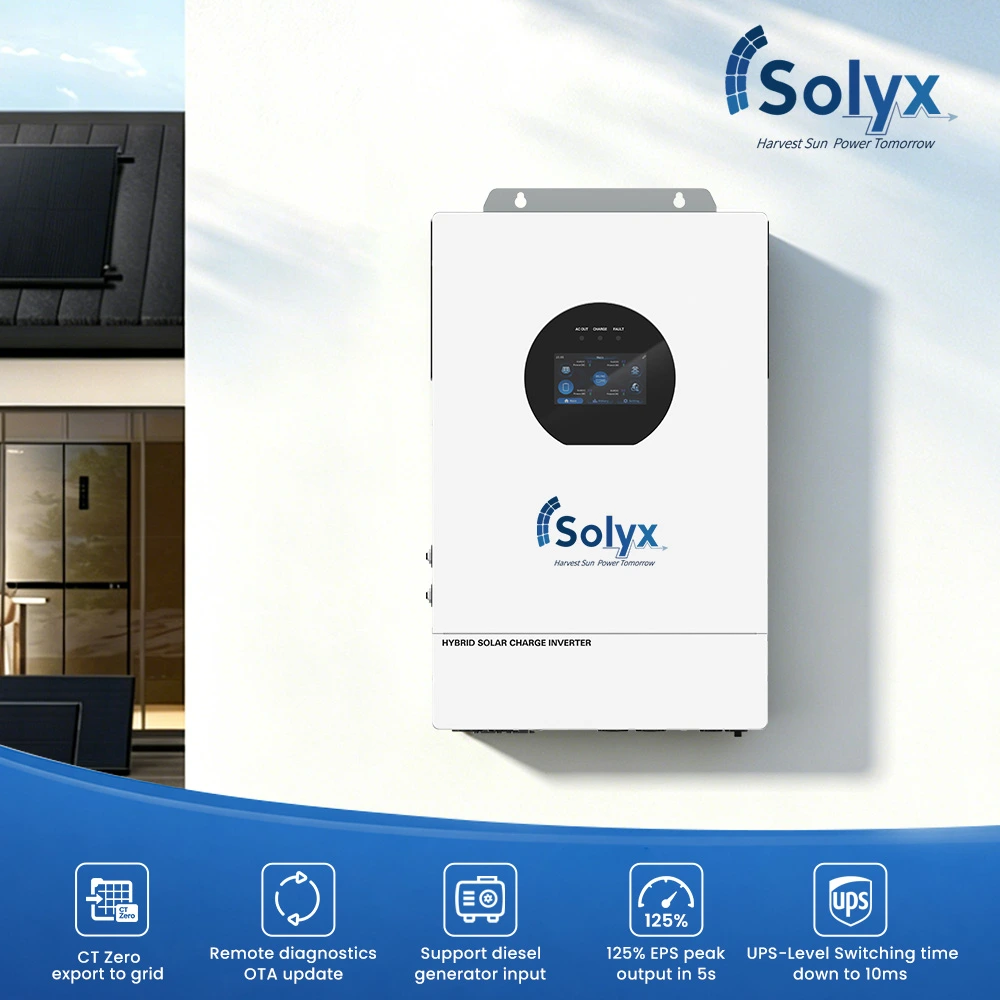

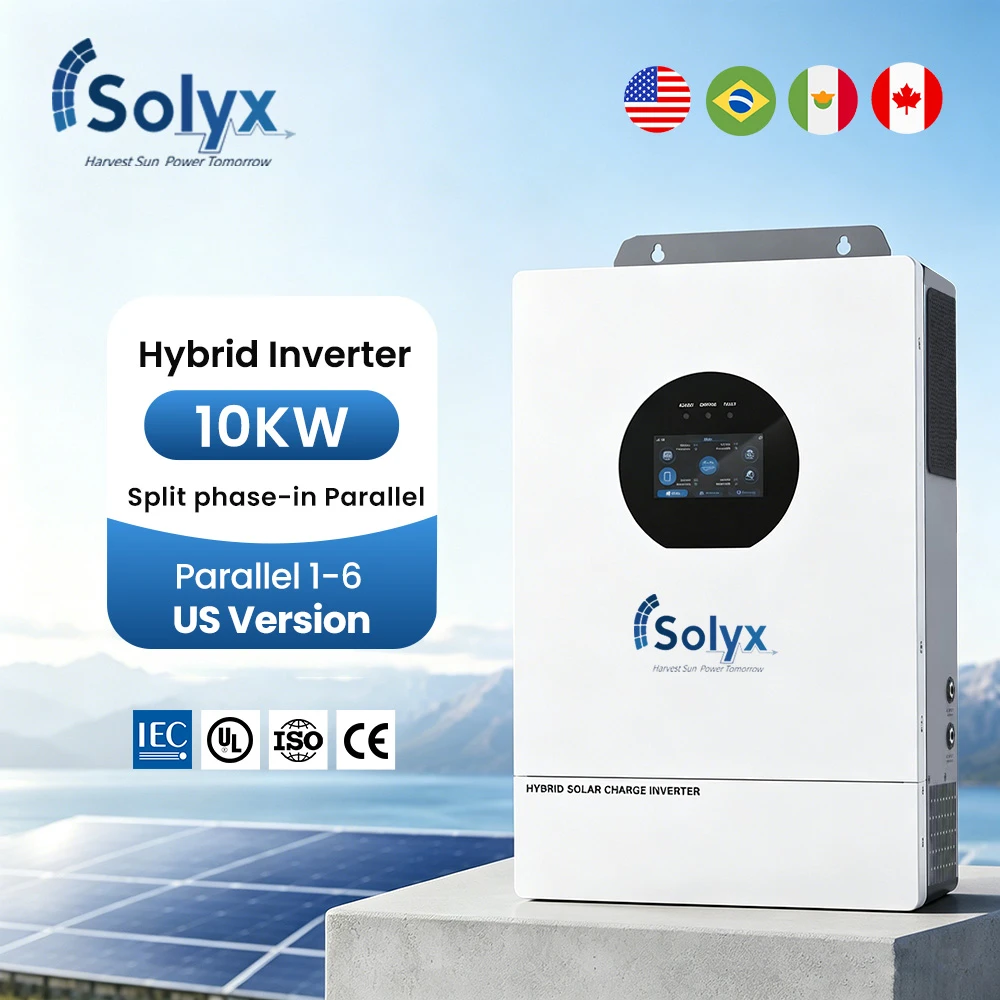

10kW split-phase, 120/240Vac, UL1741, max 6 parallel units
Dual MPPT, 500Vdc PV max VOC, 220A PV charging current
40–58.6V battery, Li/lead acid compatible, hybrid charging up to 220A

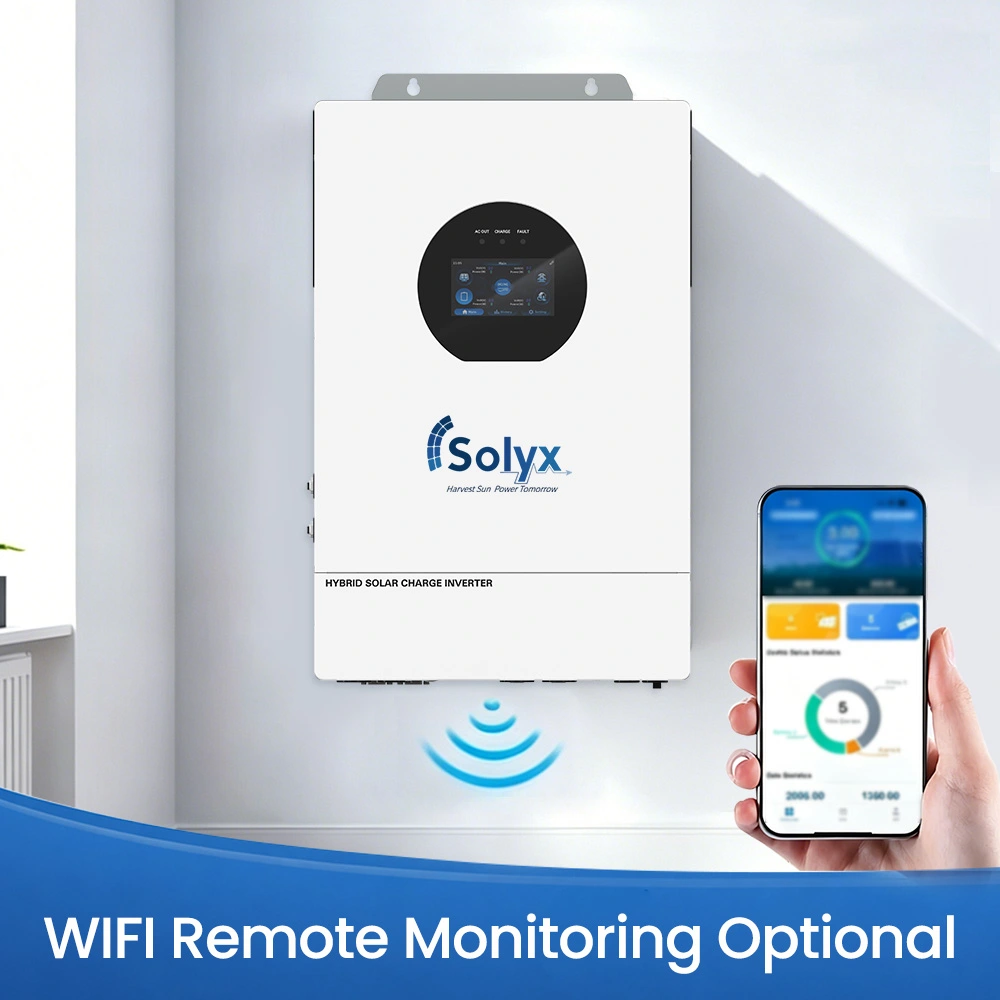

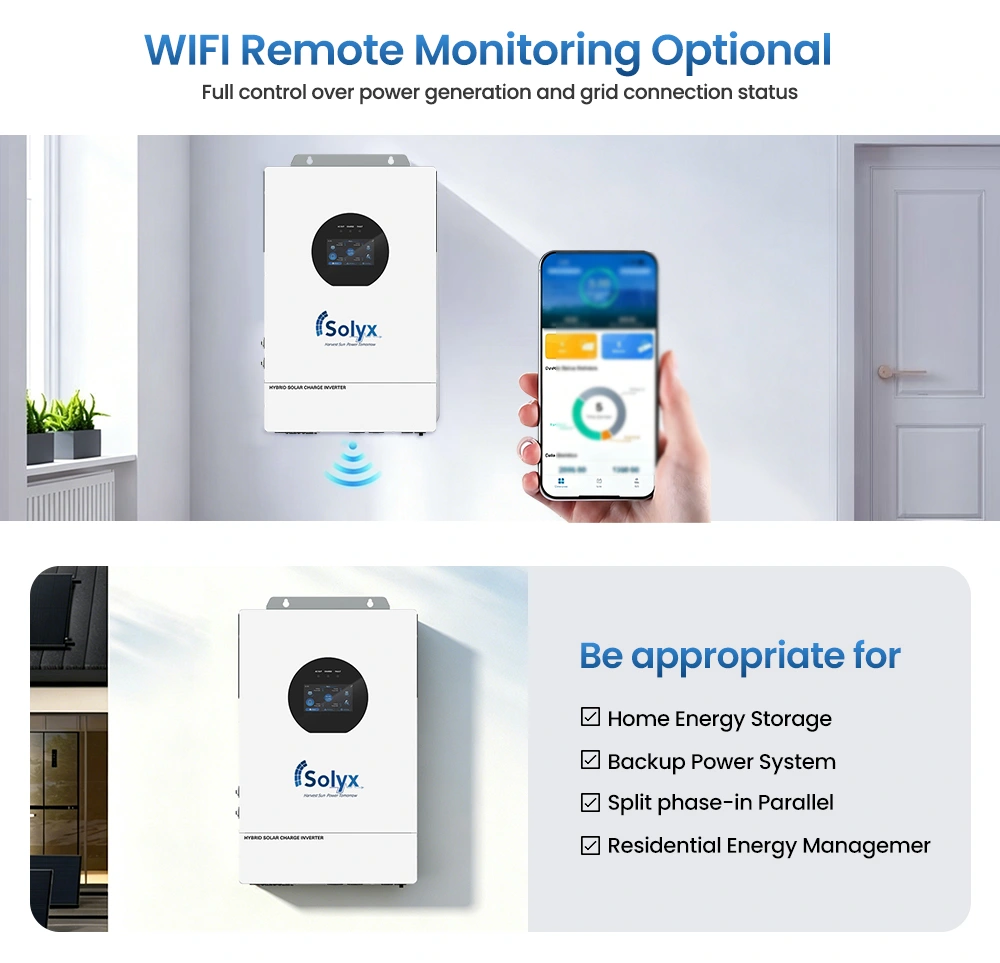

RS485/WiFi monitor, full protection, low noise ≤60dB
Detailed description

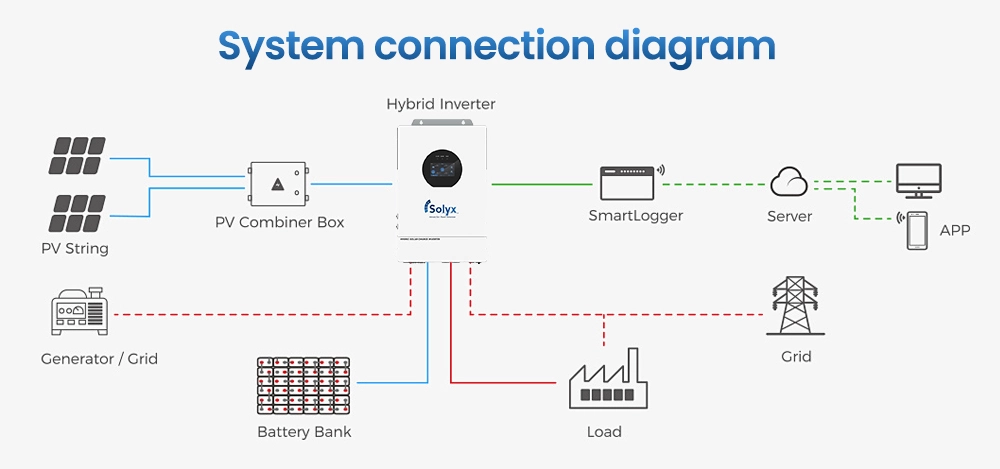

1 UL1741 certified 10kW split phase 120 240Vac hybrid solar inverter for North and South America markets supports dual MPPT solar charging with max 9000W per input 500Vdc PV open circuit voltage 90Vdc to 450Vdc MPPT range 22A and 27A PV input current ideal for high power PV arrays in off grid and grid tie systems residential and light commercial use
2 Maximum 220A PV charging current settable plus 120A AC charging settable total hybrid charging current up to 220A compatible with 48V lead acid and lithium battery voltage range 40Vdc to 58.6Vdc includes AC reverse protection reverse polarity protection fuse and circuit breaker protection for safe and reliable daily operation in harsh environments

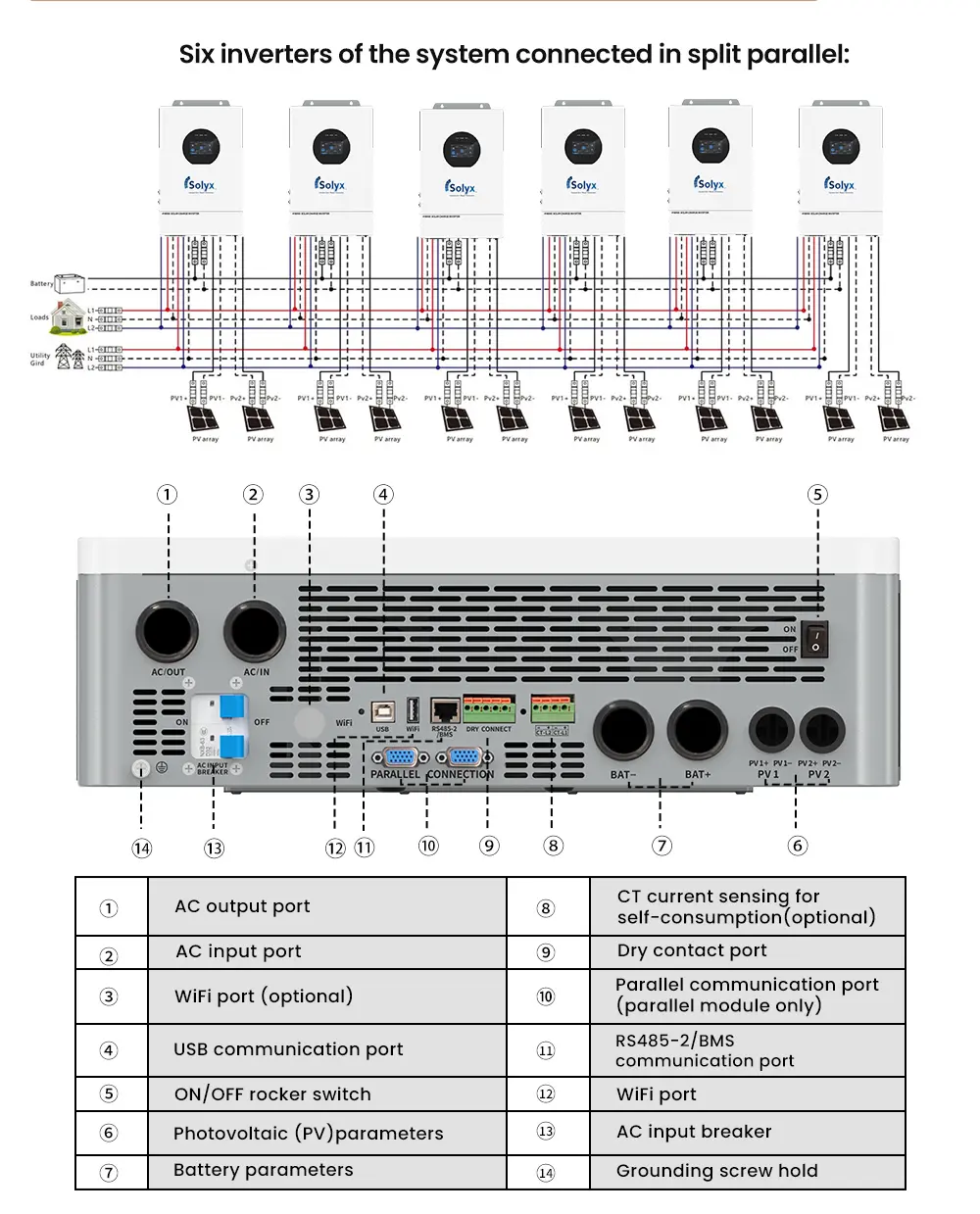

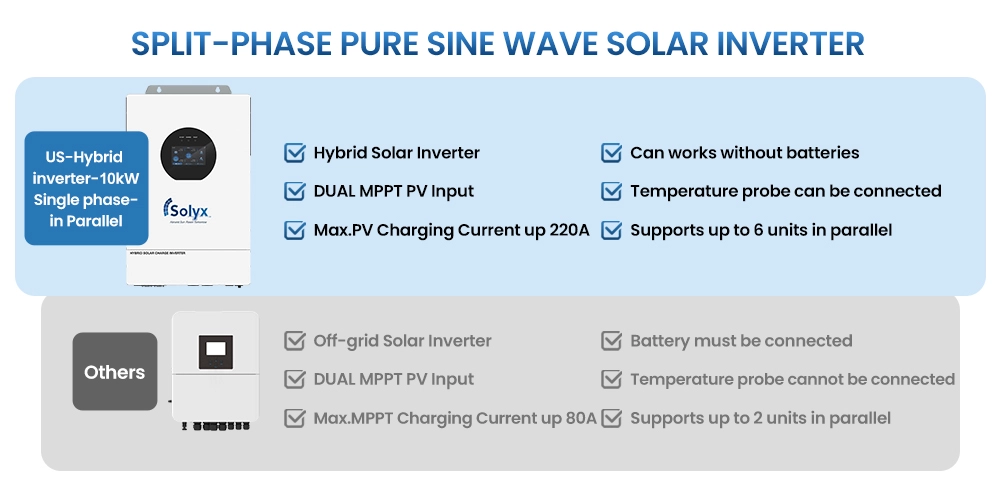

3 Parallel operation support up to 6 units for easy system expansion from 10kW to 60kW split phase output bypass overload current 60A per phase transfer time only 10ms typical inverter efficiency over 92 percent bypass efficiency over 95 percent meets UL STD 1741 and FCC part 15 Class B EMC for strict utility and safety standards
4 Handles 5HP motor load with 15000VA peak power pure sine wave output overload protection 105 to 110 percent shutdown after 5 minutes 110 to 125 percent shutdown after 10 seconds above 125 percent shutdown after 5 seconds output short circuit protection for 1 second continuous short circuit ideal for well pumps air conditioners and heavy tools 5 Wide operating temperature range from -10 to 55 degree C with derating above 45 degree C forced air cooling variable speed fan conformal coating protection for humidity
5 to 95 percent noise under 60dB communication interfaces USB RS485 WiFi GPRS dry node control product size 620x450x132mm net weight 23.5kg suitable for indoor and outdoor installation across diverse climates in Americas

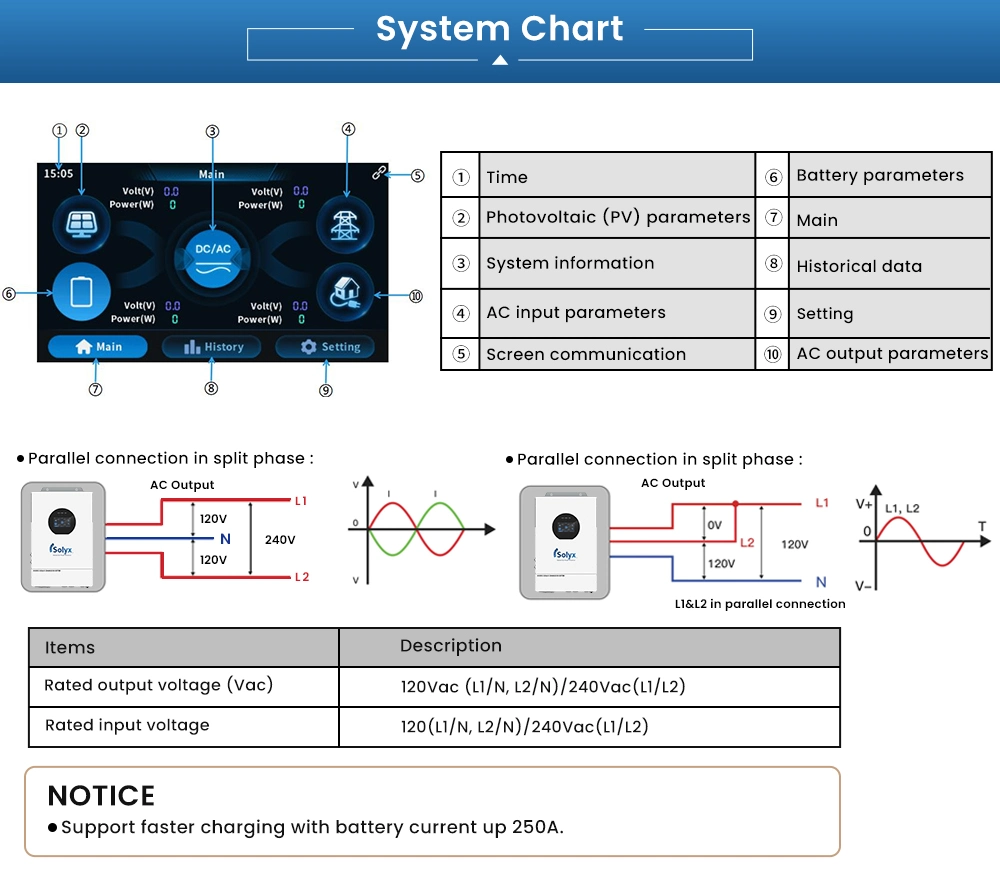

| Parallel mode | |
| Permitted parallel number | 1-6 |
| AC Mode | |
| Rated input voltage | 20Vac (L1/N, L2/N)/240Vac(L1/L2) |
| Input phase voltage range | (85Vac-140Vac) ±2% |
| Frequency | 50Hz/60Hz (Auto detection) |
| Frequency Range | 47+0.3Hz-55+0.3Hz(50Hz);57+0.3Hz-65+0.3Hz(60Hz) |
| Overload/short circuit protection | Circuit breaker |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| AC reverse protector | Yes |
| Maximum bypass phase overload current | 2pole.50A/50A(L1/L2) |
| Inverter Mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | Split phase:12000/Single phase:7200 (limited by the wiring terminals) |
| Rated output power (W) | Split phase:12000/Single phase:7200(limited by the wiring terminals) |
| Power factor | 1 |
| Rated output voltage (Vac) | 120Vac (L1/N, L2/N)/240Vac(L1/L2) |
| Output voltage error | +5% |
| Output frequency range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >91% |
| Overload protection | (105%<load<110%) +5%: report error and turn off the output after 5 minutes;(110%<load<125%) +5%: report error and turn off the output after 10 seconds;Load>125%+5%: report error and turn off the output after 5 seconds |
| Peak power | Split phase:18000VA/Single phase:10800VA |
| Loaded motor capability | 6HP |
| Output short circuit protection | Can protect, after continuous short circuit for 1 second |
| Bypass circuit breaker phase specification | 2pole,63A/63A(L1/L2) |
| Rated battery input voltage | 51.2V (Minimum starting voltage 44V) |
| Battery voltage range | 40.0Vdc-58.6Vdc+0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery…settable on LCD screen) |
| Powersavingmode self-consumption | Load per phase is null or less than 25W enter power-saving mode |
| AC charging | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current(can be set) | 160A |
| Charge current error | +5Adc |
| Charge voltage range | 40-58.6Vdc |
| Short circuit protector | Circuit breaker |
| Circuit breaker phase specifications | 2pole,63A/63A(L1/L2) |
| Parallel mode (Alternative Model) | |
| Permitted parallel number | N0/1-6 |
| AC Mode (Alternative Model) | |
| Rated input voltage | 120(L1/N,L2/N)/240Vac(L1/L2) |
| Input phase voltage range | (85Vac-140Vac) ±2% |
| Frequency | 50Hz/60Hz (Auto detection) |
| Frequency Range | 47±0.3Hz-55±0.3Hz(50Hz);57±0.3Hz-65±0.3Hz(60Hz) |
| Overload/short circuit protection | Circuit breaker |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| AC reverse protector | Yes |
| Maximum bypass phase overload current | 2 pole,60A/60A(L1/L2) |
| Inverter Mode (Alternative Model) | |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | Split phase:10000/Single phase: 7200(limited by the wiring terminals) |
| Rated output power (W) | Split phase:10000/Single phase:7200(limited by the wiring terminals) |
| Power factor | 1 |
| Rated output voltage (Vac) | 120Vac (L1/N, L2/N)/240Vac(L1/L2) |
| Output voltage error | +5% |
| Output frequency range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >92% |
| Overload protection | (105% < load <110%) +5%: report error and turn off the output after 5 minutes;(110% < load < 125%) I 5%: report error and turn off the output after 10 seconds;Load >125% +5%: report error and turn off the output after 5 seconds |
| Peak power | Split phase: 15000VA/Single phase: 10800VA |
| Loaded motor capability | 5HP |
| Output short circuit protection | Can protect, after continuous short circuit for 1 second |
| Bypass circuit breaker phase specification | 2pole,63A/63A(L1/L2) |
| Rated battery input voltage | 51.2V (Minimum starting voltage 44V) |
| Battery voltage range | 40.0Vdc-58.6Vdcl0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery.. settable on LCD screen) |
| Powersavingmode self-consumption | Loads≤25W enter power-saving mode |
| AC charging (Alternative Model) | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current(can be set) | 120A |
| Charge current error | +5Adc |
| Charge voltage range | 40-58.6Vdc |
| Short circuit protection | Circuit breaker and blown fuse |
| Circuit breaker phase specifications | 2 pole, 60A/60A(L1/L2) |
| PV charging | |
| Number of MPPT groups | 2 |
| Maximum PV open circuit voltage | 500Vdc |
| PV operating voltage range | 90Vdc~485Vdc |
| MPPT voltage range | 90Vdc~450Vdc |
| Battery voltage range | 40-58.6Vdc |
| Maximum PV input power | 9000W+9000 |
| Maximum PV input current | W22A+27A |
| PV charging current range(can be set) | 220A |
| Charging short circuit protection | Blown fuse |
| Wiring protection | Reverse polarity protection |
| Hybrid charging Max charging current specifications (AC charging+PV charging) | |
| Max charger current(can be set) | 0-220A |
| Certified specifications | |
| Certification | ULSTD.1741 |
| EMC certification level | FCC part15,CLASS B |
| Operating temperature range | -10℃ to 55℃(>45℃ derating) |
| Storage temperature range | -25℃~60℃ |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Heat dissipation | Forced air cooling, variable speed of fan |
| Communication interface | USB/RS485(/WiFi/GPRS)/Dry node control |

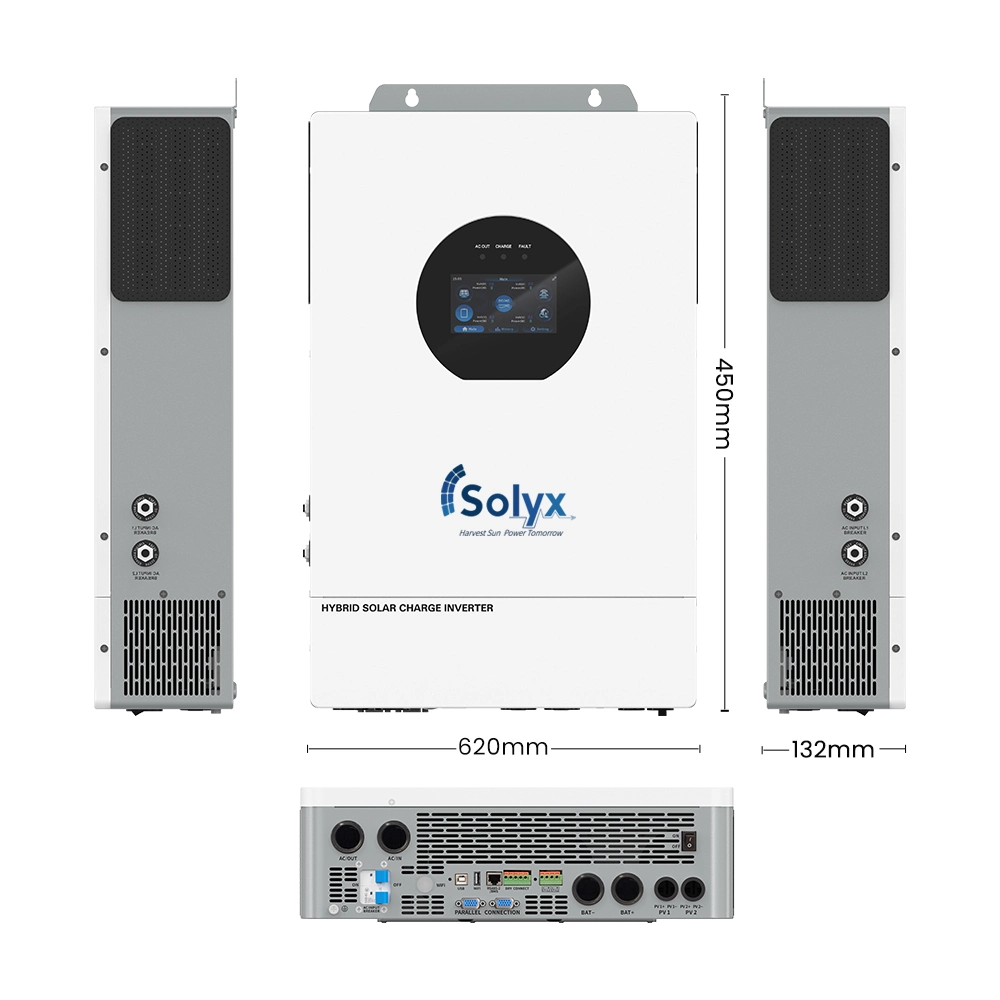

| Product dimensions (L*W*H) | 620x450x132mm |
| Packaging dimensions (L*W*H) | 768x564x234mm |
| Net weight/Gross weight (kg) | 23.5/26.95 |
