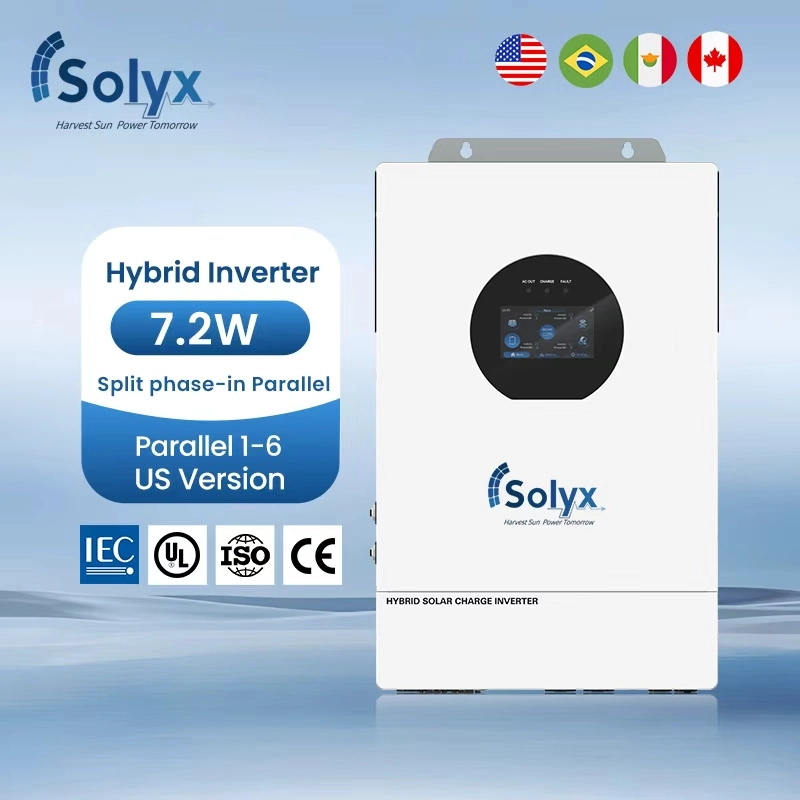

Key Highlights of 7.2KW US Standard Hybrid Inverter

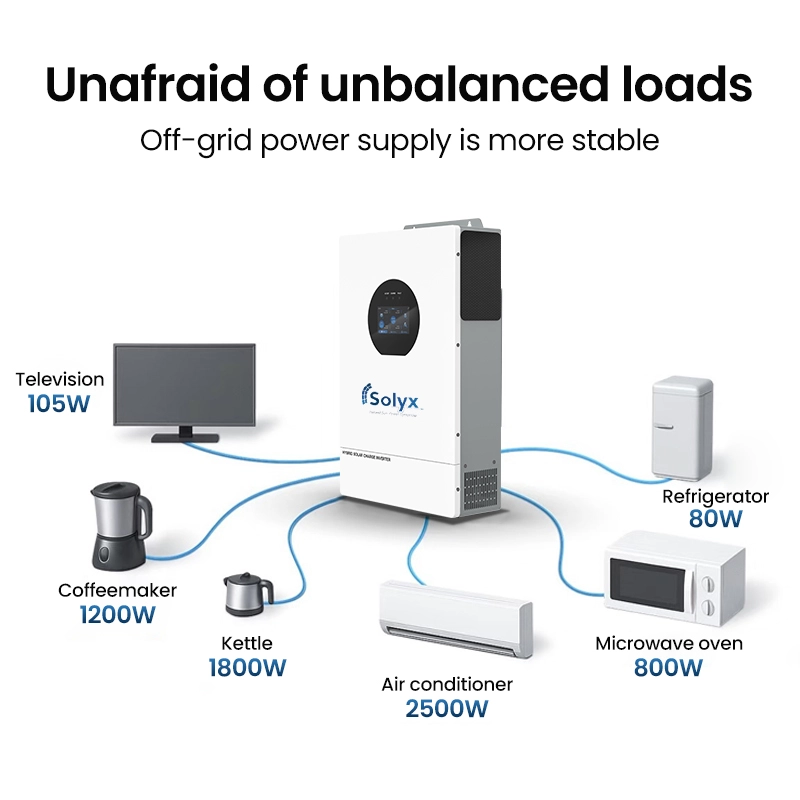

1 This hybrid solar inverter delivers robust performance with a split-phase rated power of 7200VA/7200W (and 6000VA/6000W for single-phase use), capable of powering heavy loads and supporting a 4HP motor start. Its 10800VA peak power ensures reliable handling of high initial current draws, while the pure sine wave output guarantees stable, clean power to protect sensitive electronics, appliances, and industrial equipment from damage caused by voltage fluctuations or harmonic distortion. With an output voltage accuracy of ±5% and frequency control within ±0.3Hz, it maintains consistent power quality for critical applications, making it ideal for both residential and light commercial setups.

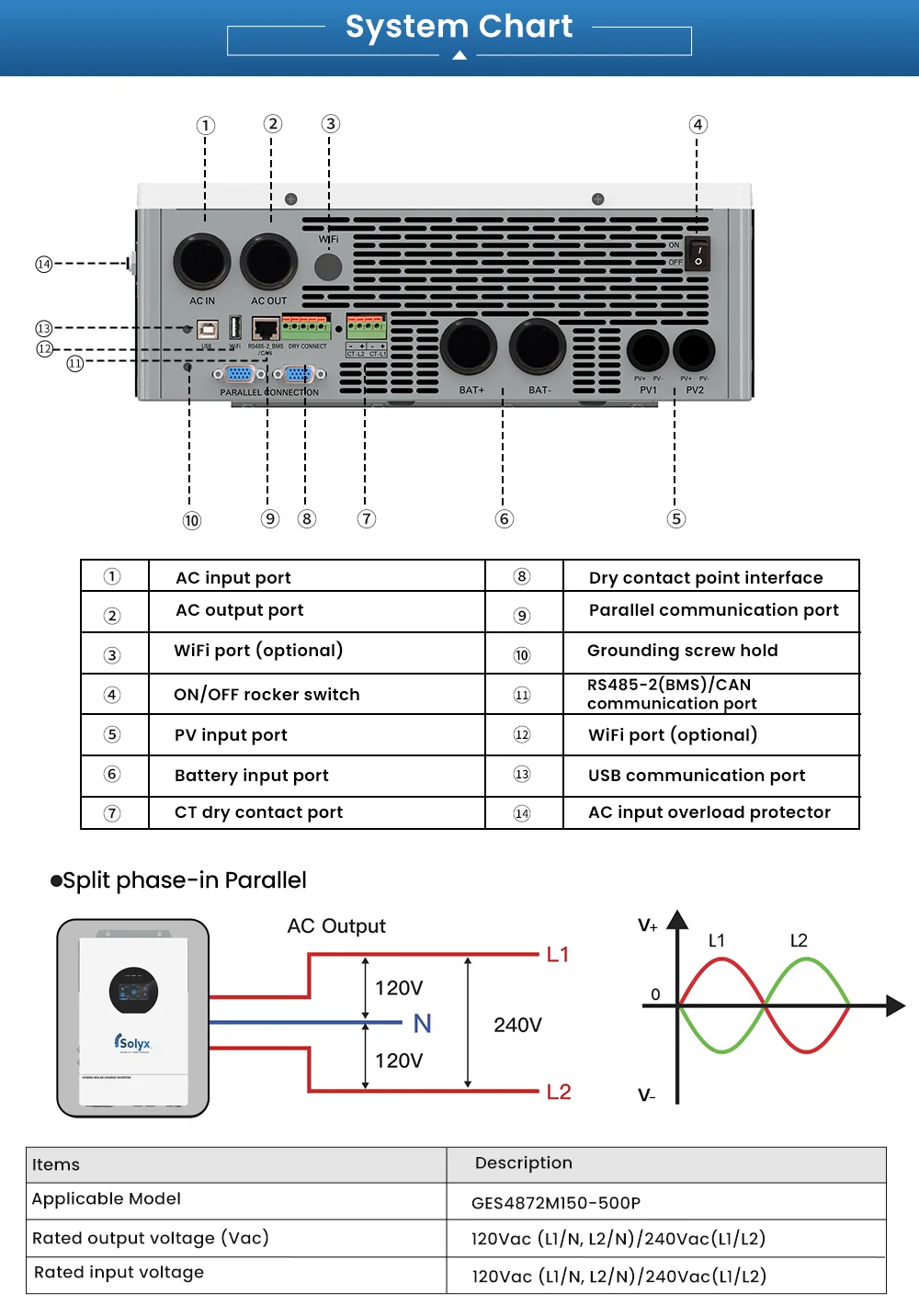

2 Designed for universal use, the inverter supports dual AC input ranges (120Vac split-phase legs or 240Vac single-phase) with an ultra-wide 85V-140V input tolerance, adapting to unstable grid supplies or weak utility lines. It seamlessly works with both lead-acid and lithium-ion batteries, featuring a configurable charging system that delivers up to 120A adjustable current. The 40.0Vdc to 58.6Vdc battery voltage range, paired with built-in over/under-voltage alarms, ensures safe and efficient charging while extending battery lifespan. The 51.2V rated battery input (with a 44V minimum start voltage) also ensures compatibility with modern high-voltage battery banks for scalable energy storage.

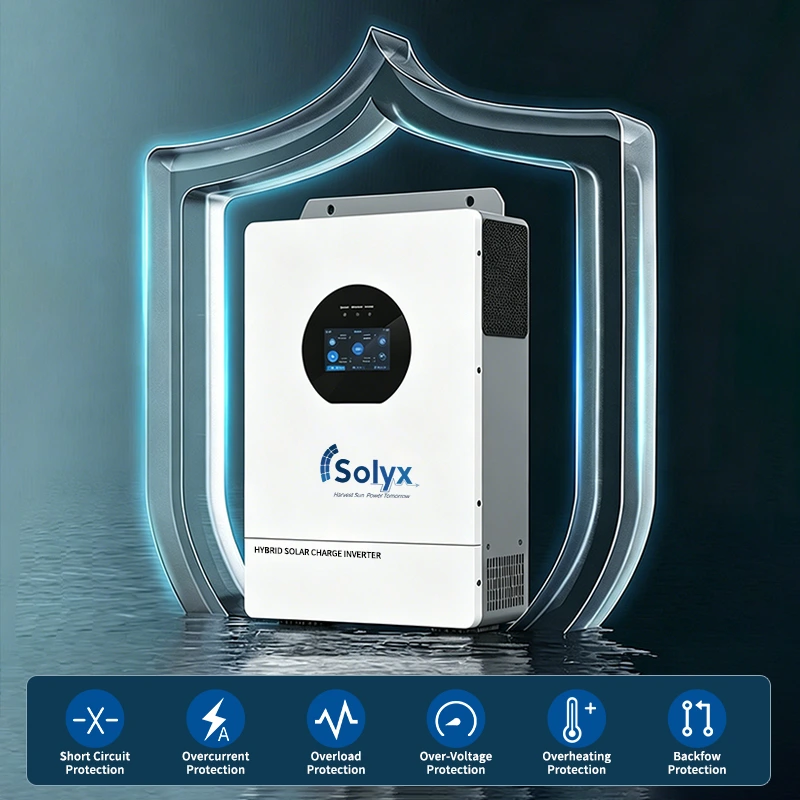

3 Boasting 95% efficiency in bypass mode and over 91% efficiency in inverter mode, this unit minimizes energy loss during conversion to maximize system performance. It includes multi-layer protection mechanisms: circuit breakers for overload and short-circuit safety, AC reverse polarity prevention, and a 1-second continuous short-circuit response to safeguard connected devices. The overload protection system automatically triggers error alerts and shut-down sequences when loads exceed safe limits, while the 2-pole 50A phase-specific circuit breakers add an extra layer of reliability.
