US Standard 3.6kW Rated Power
Hybrid & Off-Grid Dual Mode
MPPT High Efficiency Tracking
WiFi Remote Monitoring Optional
Detailed description

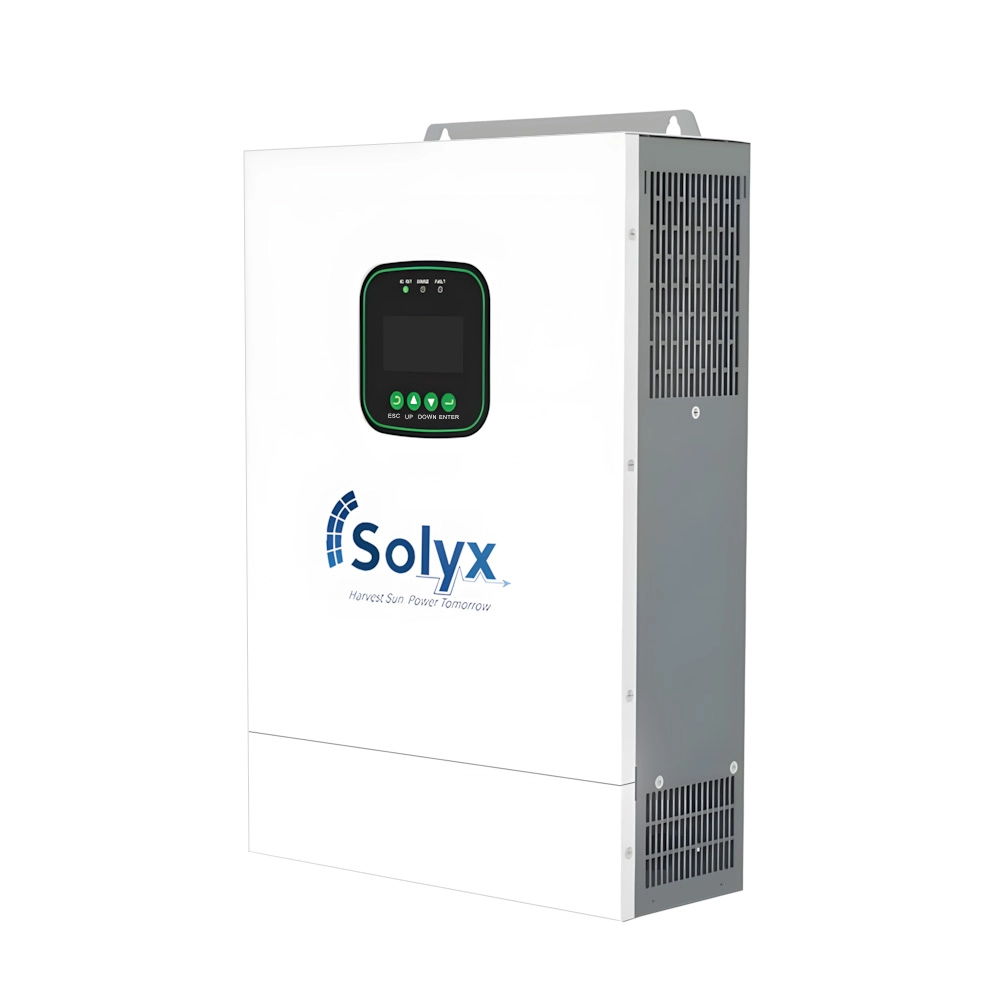

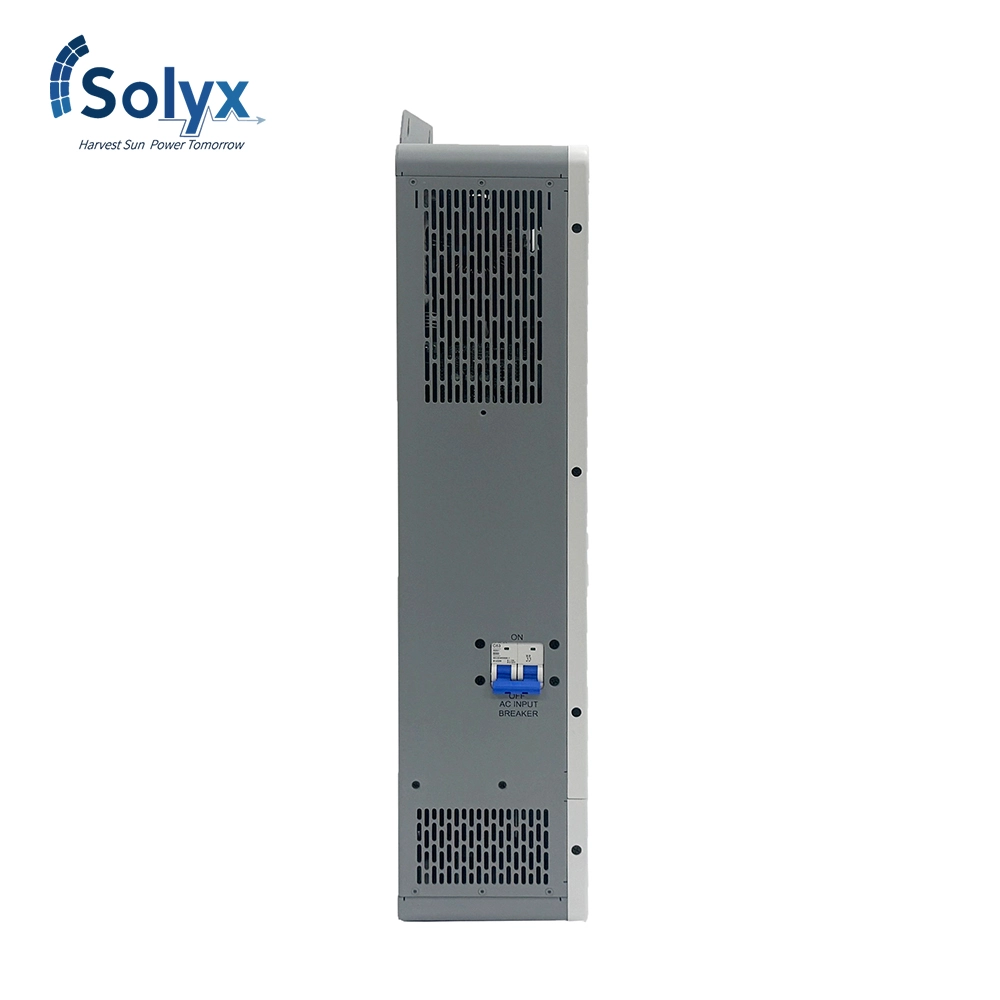

1 UL1741 certified 3.6kW single phase 120 240Vac hybrid solar inverter supports single phase operation and single phase output pure sine wave ideal for North and South America residential off grid and backup power systems lightweight compact size 415x280x100mm easy wall mount installation

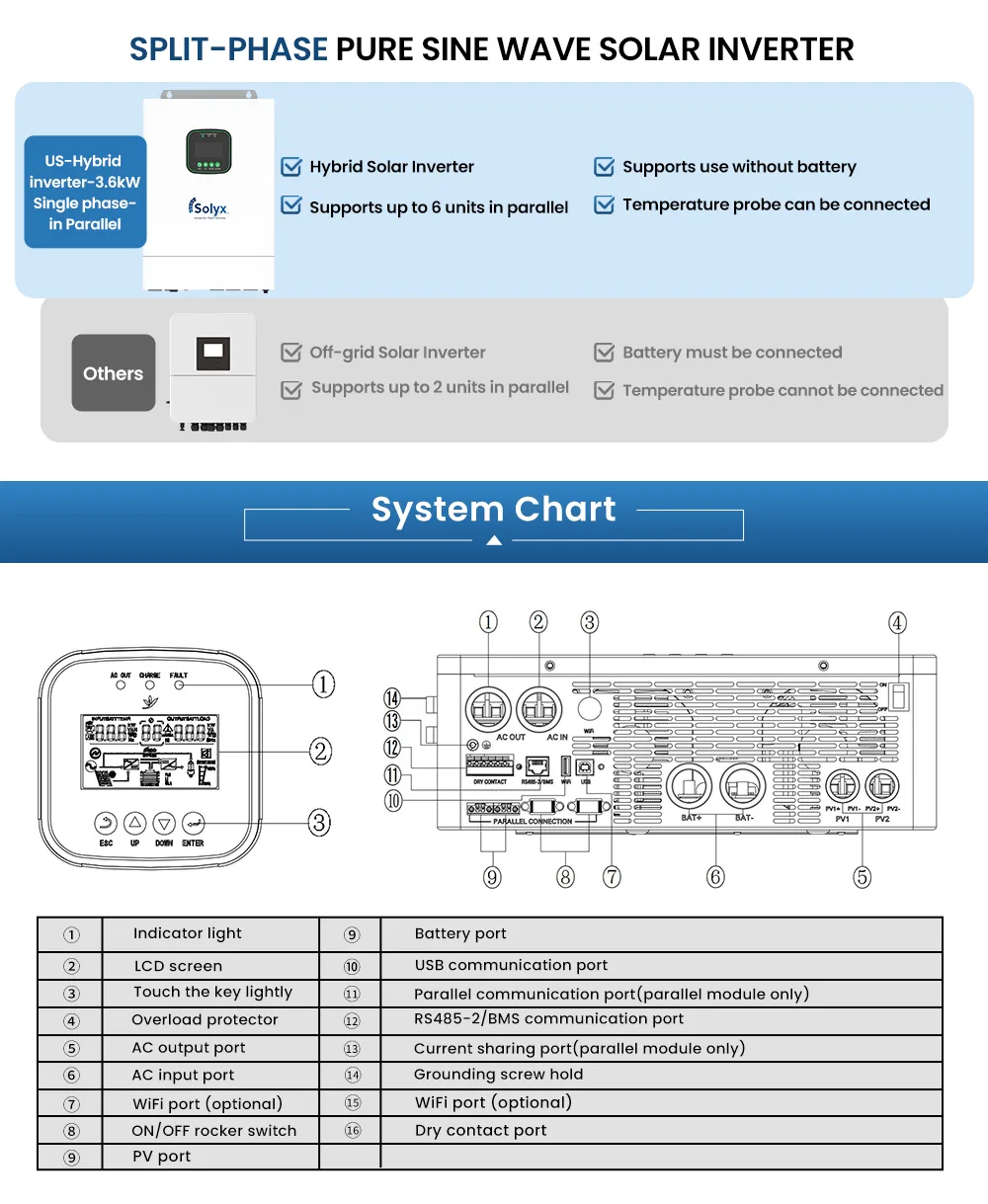

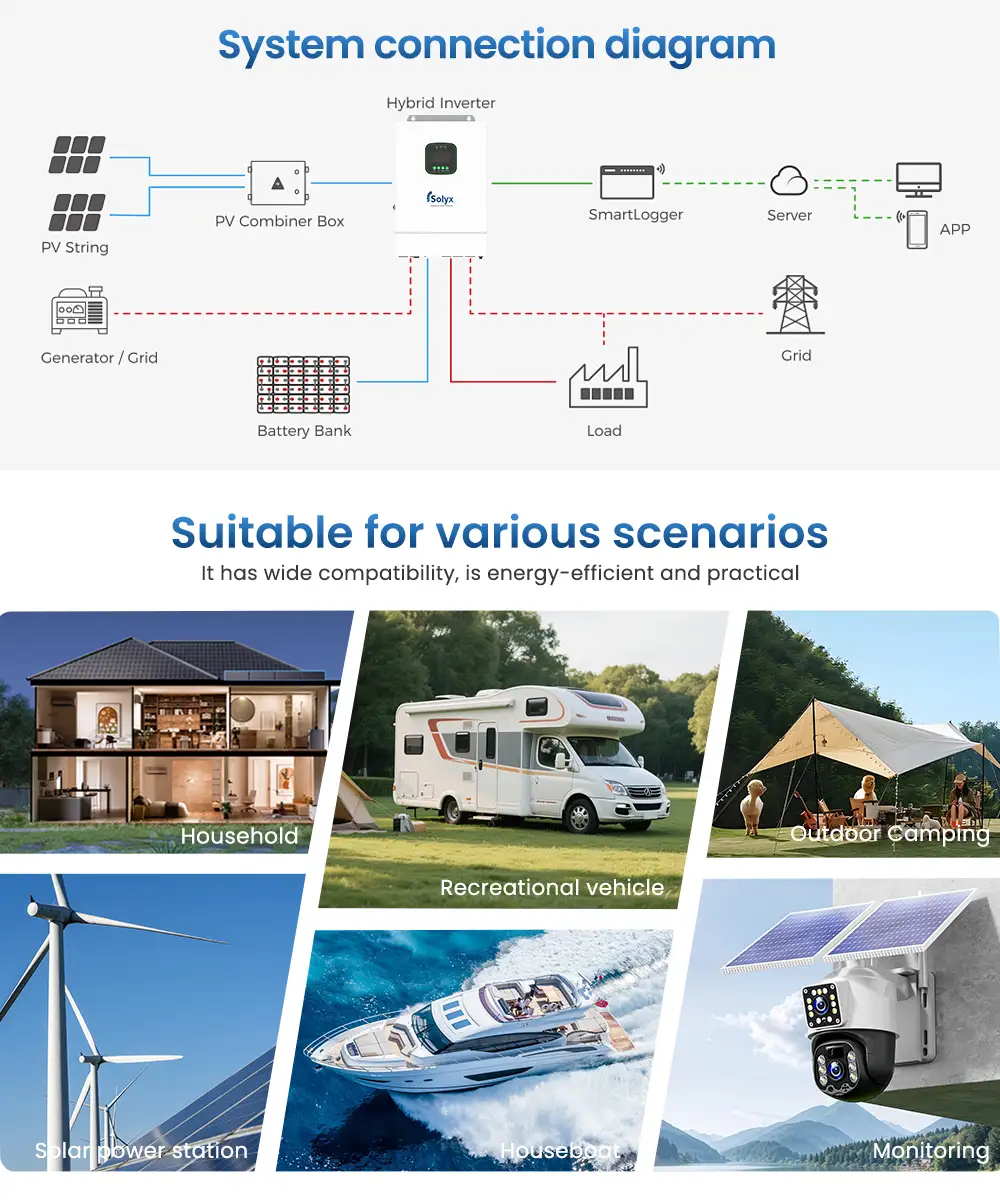

2 Dual operation modes hybrid inverter supports up to 6 units in parallel for system expansion from 3.6kW to 21.6kW works with or without battery connection flexibility for different user needs temperature probe connectable for battery monitoring
3 PV charging with max 4500W solar input 300Vdc open circuit voltage 90 260Vdc MPPT range 27A PV current 0 80A settable PV charge current AC charging up to 120A settable total hybrid charging current 0 80A compatible with lead acid and lithium battery 40 60Vdc
4 AC bypass efficiency >95 percent inverter efficiency >92 percent 10ms typical transfer time bypass circuit breaker 63A per phase AC reverse protection overload protection for 105 125 percent loads pure sine wave output power factor 1 handles motor loads with short circuit protection
5 Certified to UL1741 and FCC part 15 class B operating temperature -10 to 55C forced air cooling conformal coating for 5 to 95 percent humidity noise under 60dB communication USB RS485 WiFi GPRS dry node control perfect for remote solar installations and home energy storage in Americas
| Solyx Solar Inverter Technical Specifications | |
| Parallel mode | |
| Parameter | Specification |
| Permitted parallel number | N0/1-6 |
| AC Mode | |
| Parameter | Specification |
| Rated input voltage | 120(L1/N,L2/N)/240Vac(L1/L2) |
| Input phase voltage range | (85Vac-140Vac) +2% |
| Frequency | 50Hz/60Hz (Auto detection) |
| Frequency Range | 47±0.3Hz-55±0.3Hz(50Hz);57±0.3Hz-65±0.3Hz(60Hz) |
| Overload/short circuit protection | Circuit breaker |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| AC reverse protector | Yes |
| Maximum bypass phase overload current | 2 pole,60A/60A(L1/L2) |
| Inverter Mode | |
| Parameter | Specification |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | Split phase:10000/Single phase: 7200(limited by the wiring terminals) |
| Rated output power (W) | Split phase:10000/Single phase:7200(limited by the wiring terminals) |
| Power factor | 1 |
| Rated output voltage (Vac) | 120Vac (L1/N, L2/N)/240Vac(L1/L2) |
| Output voltage error | +5% |
| Output frequency range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >92% |
| Overload protection | (105% < load <110%) +5%: report error and turn off the output after 5 minutes (110% < load < 125%) 15%: report error and turn off the output after 10 seconds Load >125% +5%: report error and turn off the output after 5 seconds |
| Peak power | Split phase: 15000VA/Single phase: 10800VA |
| Loaded motor capability | 5HP |
| Output short circuit protection | Can protect, after continuous short circuit for 1 second |
| Bypass circuit breaker phase specification | 2pole,63A/63A(1/12) |
| Rated battery input voltage | 51.2V (Minimum starting voltage 44V) |
| Battery voltage range | 40.0Vdc-58.6Vdc10.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery.. settable on LCD screen) |
| Powersavingmode self-consumption | Loads≤25W enter power-saving mode |
| AC charging | |
| Parameter | Specification |
| Battery type | Lead acid or lithium battery |
| Maximum charge current(can be set) | 120A |
| Charge current error | +5Adc |
| Charge voltage range | 40-58.6Vdc |
| Short circuit protector | Circuit breaker and blown fuse |
| Circuit breaker phase specifications | 2 pole, 60A/60A(L1/L2) |
| PV charging | |
| Parameter | Specification |
| Maximum PV open circuit voltage | 300Vdc |
| PV operating voltage range | 120-300Vdc |
| MPPT voltage range | 90-260Vdc |
| Battery voltage range | 40-60Vdc |
| Maximum PV input power | 4500W |
| Maximum PVinput current | 27A |
| PV charge current(can be set) | 0-80A |
| Charging short circuit protection | Blown fuse |
| Wiring protection | Reverse polarity protection |
| Hybridcharging Max charger current specifications (AC charger+PV charger) | |
| Parameter | Specification |
| Max charger current(can be set) | 0-80A |
| Certified specifications | |
| Parameter | Specification |
| Certification | CE(IEC62109-1,2)/ UL 1741 |
| EMC certification leve | En61000, C2/FCC 15 class B |
| Operating temperature range | -10℃to55℃ |
| Storage temperature range | -25℃-60℃ |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Heat dissipation | Forced air cooling, variable speed of fan |

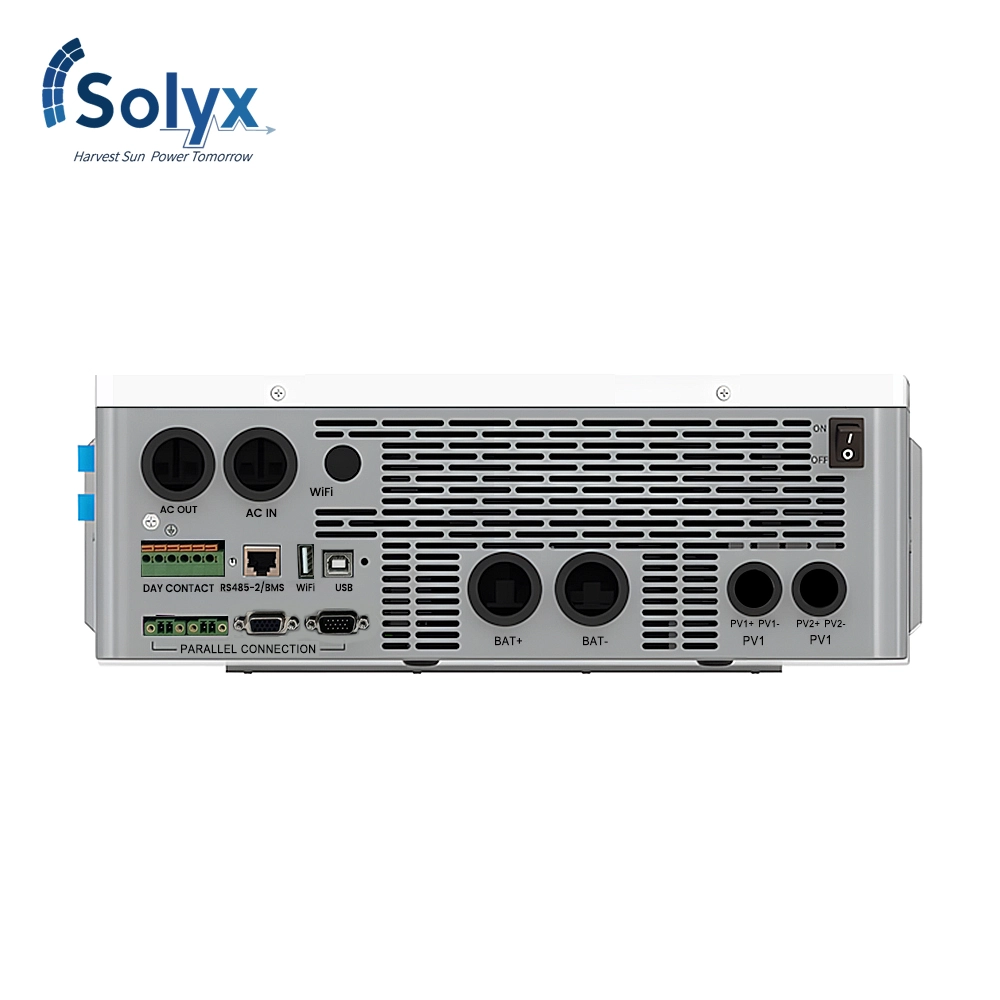

| Communicati on interface | USB/RS485((WiFi/GPRS)/ Dry node control |
| Size (L*W*D) | 415mm*280mm*100mm |
| Weight (kg) | 7.8 |
