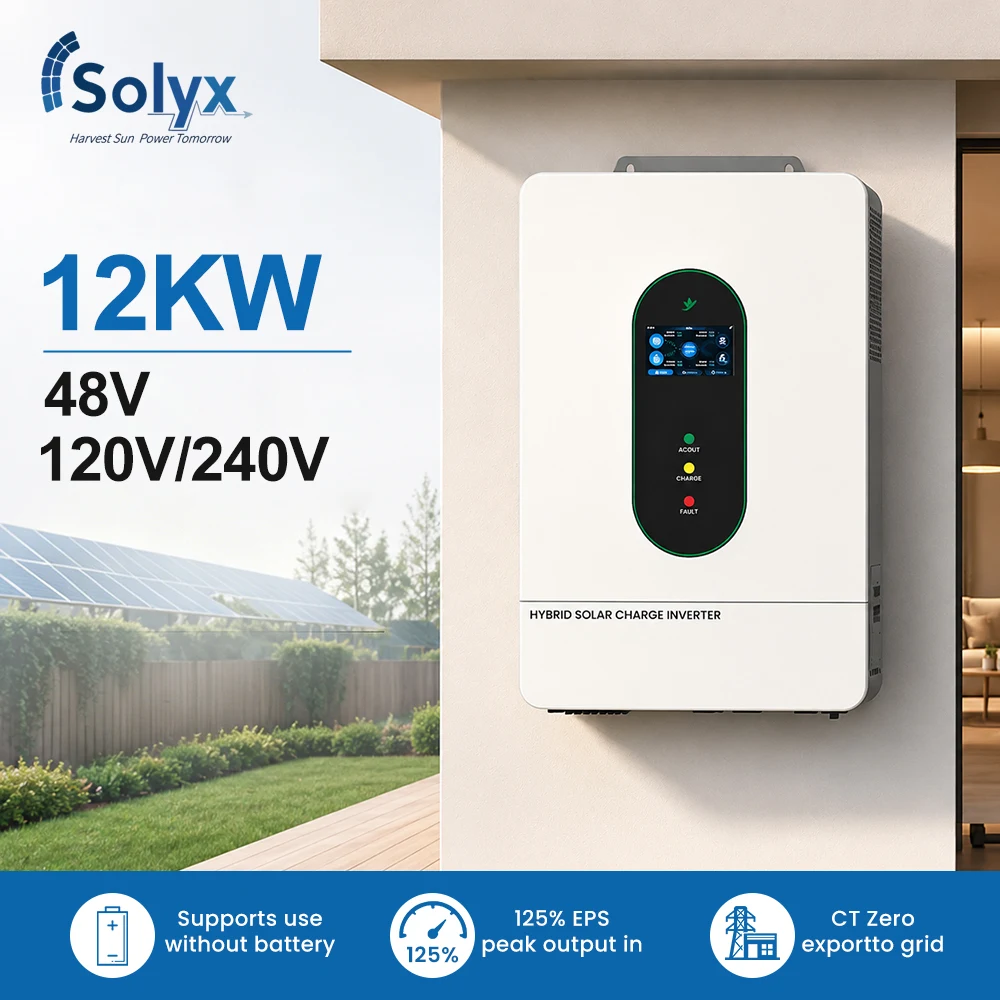

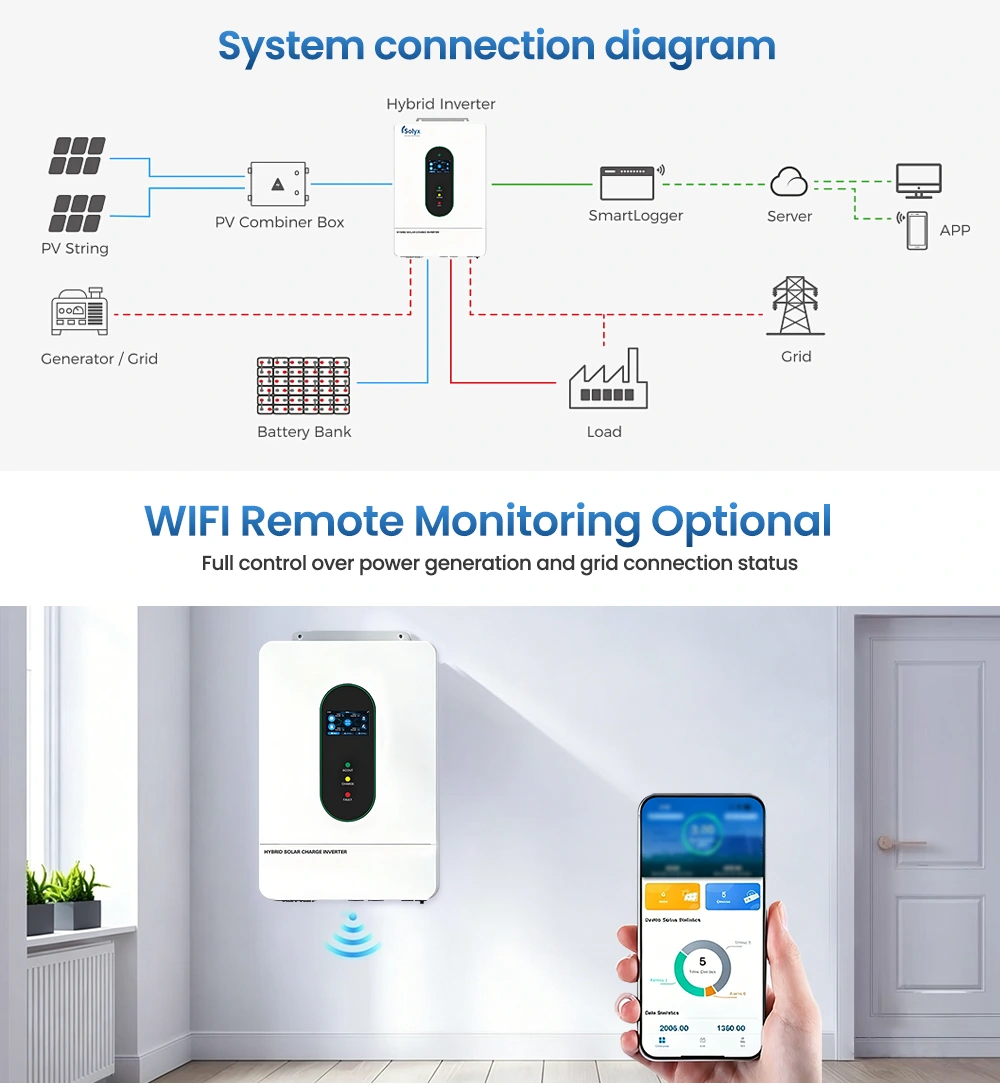

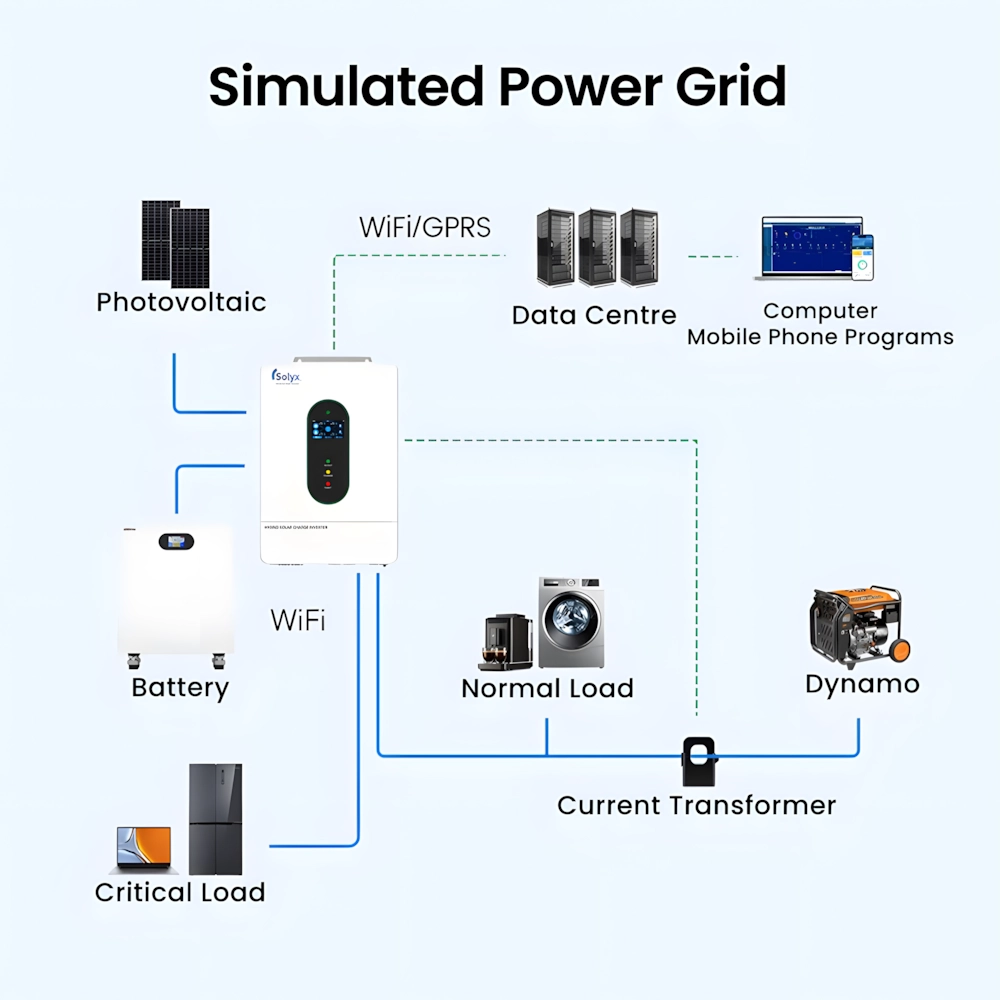

Dual MPPT controllers with total 18kW maximum PV input power
Pure sine wave split-phase 120/240Vac output, peak power up to 15kw
10ms seamless bypass & inverter mode switching, no power interruption
Supports up to 6 units parallel connection for flexible system expansion

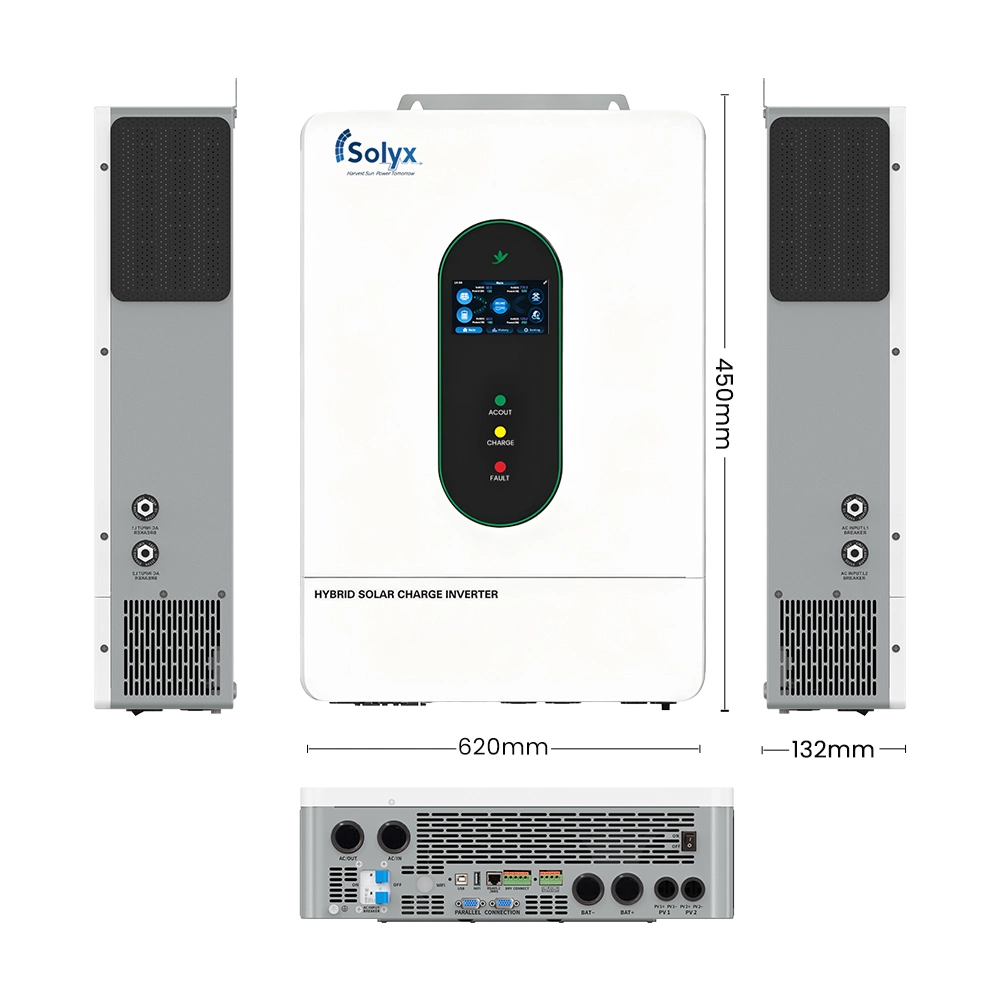

Detailed description
1 this 12kw solar inverter supports parallel connection of up to 6 units, with high efficiency over 95% in ac mode and over 91% in inverter mode, featuring automatic 50hz/60hz frequency detection and 10ms typical conversion time between bypass and inverter mode, ensuring stable and efficient power conversion for residential and commercial use
2 it provides pure sine wave output, with split phase 12000va/12000w or single phase 7200va/7200w rated power, supporting 6hp loaded motor capability, and meets various high power load demands while delivering clean and stable ac power

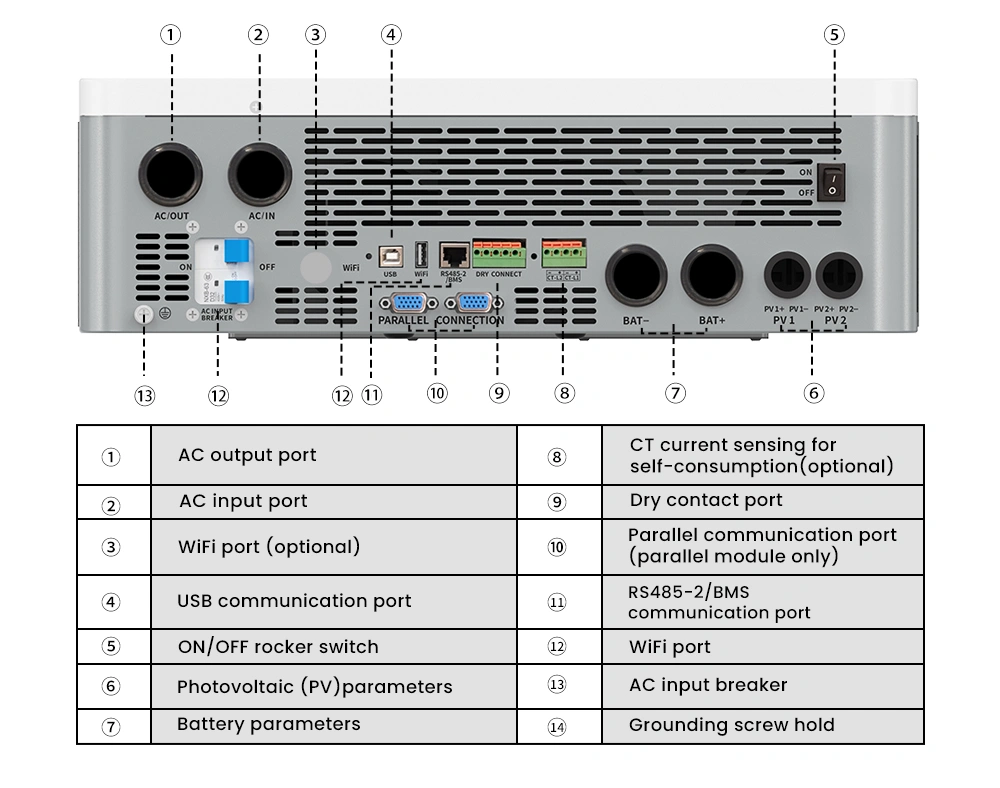

3 the inverter is equipped with comprehensive protection including overload short circuit reverse polarity and overvoltage protection, with 2pole 63a circuit breakers for safety, and supports both lead acid and lithium batteries with adjustable charge current up to 160a
4 it has a wide battery voltage range from 40.0vdc to 58.6vdc, supports undervoltage and overvoltage alarm and recovery functions, and features a low power saving mode that activates when the load is below 25w, reducing unnecessary energy consumption
| Module | Parameter Name | Parameter Value |
| Parallel mode | Permitted parallel number | 1-6 |
| AC Mode | Rated input voltage | 20Vac (L1/N, L2/N)/240Vac(L1/L2) |
| Input phase voltage range | (85Vac-140Vac) ±2% | |
| Frequency | 50Hz/60Hz (Auto detection) | |
| Frequency Range | 47+0.3Hz-55+0.3Hz(50Hz);57+0.3Hz-65+0.3Hz(60Hz) | |
| Overload/short circuit protection | Circuit breaker | |
| Efficiency | >95% | |
| Conversion time (bypass and inverter) | 10ms (typical) | |
| AC reverse protector | Yes | |
| Maximum bypass phase overload current | 2pole.50A/50A(L1/L2) | |

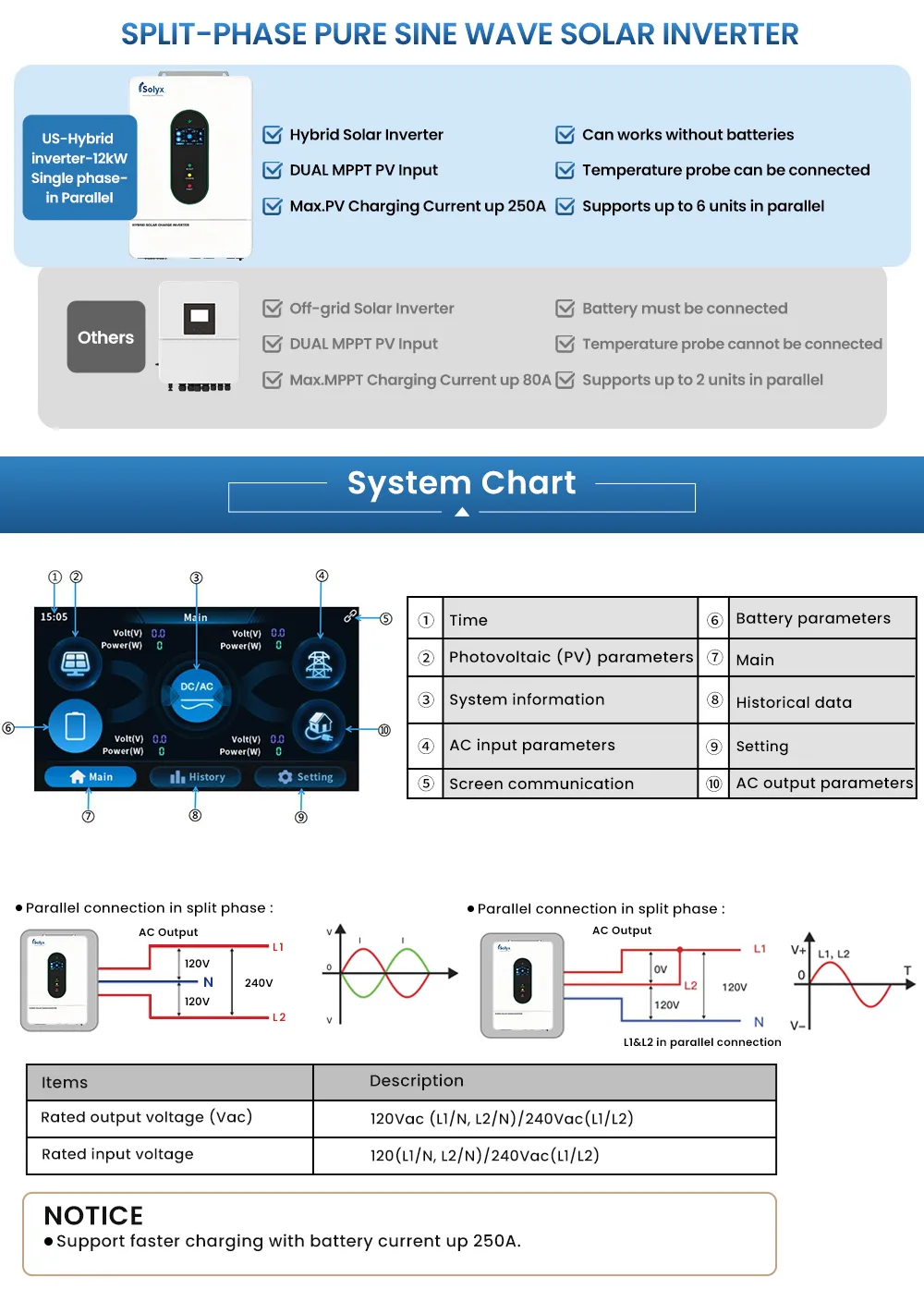

| Inverter Mode | Output voltage waveform | Pure sine wave |
| Rated output power (VA) | Split phase:12000/Single phase:7200 (limited by the wiring terminals) | |
| Rated output power (W) | Split phase:12000/Single phase:7200(limited by the wiring terminals) | |
| Power factor | 1 | |
| Rated output voltage (Vac) | 120Vac (L1/N, L2/N)/240Vac(L1/L2) | |
| Output voltage error | +5% | |
| Output frequency range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |
| Maximum Efficiency | >91% | |
| Overload protection | (105%<load<110%) +5%: report error and turn off the output after 5 minutes;(110%<load<125%) +5%: report error and turn off the output after 10 seconds;Load>125%+5%: report error and turn off the output after 5 seconds | |
| Peak power | Split phase:18000VA/Single phase:10800VA | |
| Loaded motor capability | 6HP | |
| Output short circuit protection | Can protect, after continuous short circuit for 1 second | |
| Bypass circuit breaker phase specification | 2pole,63A/63A(L1/L2) | |
| Rated battery input voltage | 51.2V (Minimum starting voltage 44V) | |
| Battery voltage range | 40.0Vdc-58.6Vdc+0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery…settable on LCD screen) | |
| Powersavingmode self-consumption | Load per phase is null or less than 25W enter power-saving mode | |
| AC charging | Battery type | Lead acid or lithium battery |
| Maximum charge current(can be set) | 160A | |
| Charge current error | +5Adc | |
| Charge voltage range | 40-58.6Vdc | |
| Short circuit protector | Circuit breaker | |
| Circuit breaker phase specifications | 2pole,63A/63A(L1/L2) |
